NVIDIA Jetson 開發系統

  • Y-C6-DEV開發系統
  • Y-C6-DEV開發系統
  • Y-C6-DEV開發系統
Y-C6-DEV開發系統Y-C6-DEV開發系統Y-C6-DEV開發系統

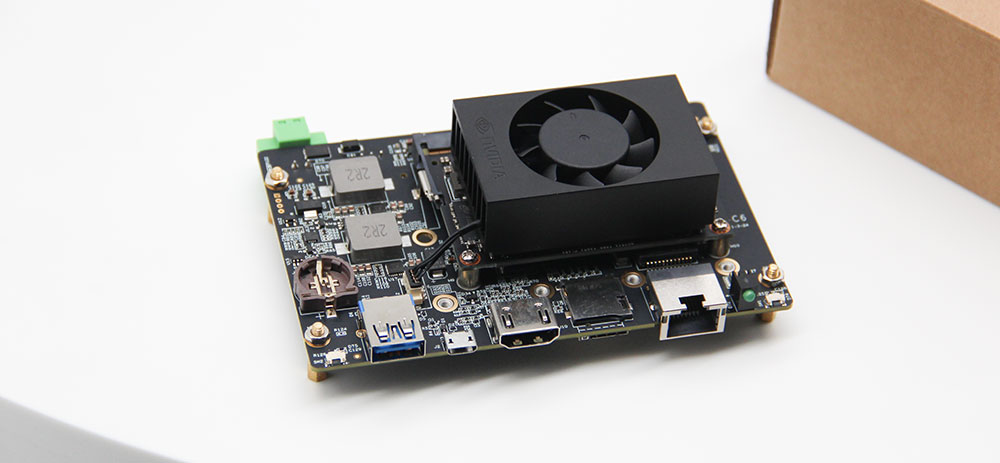

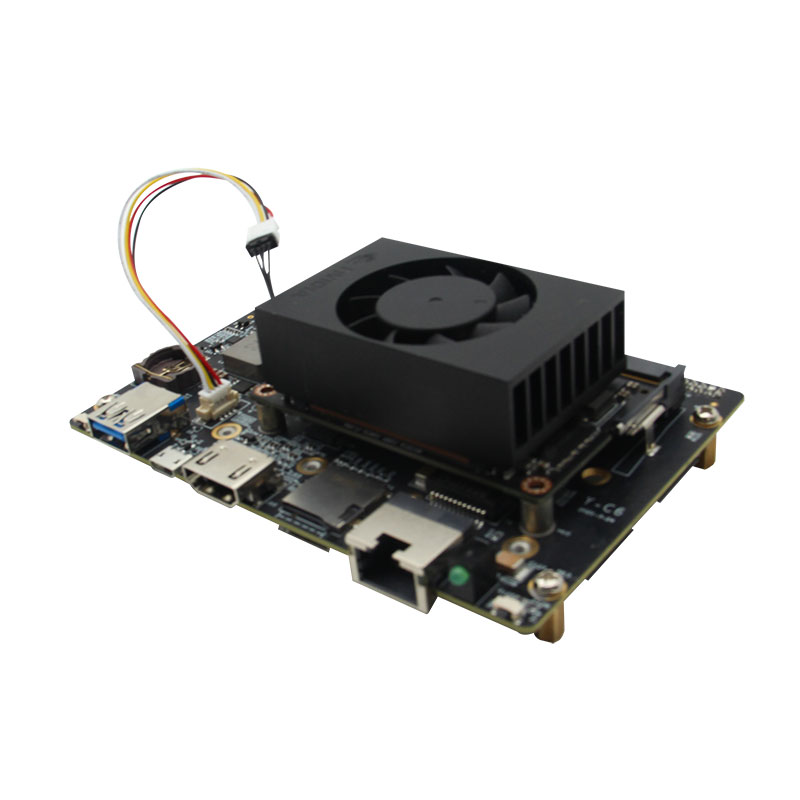

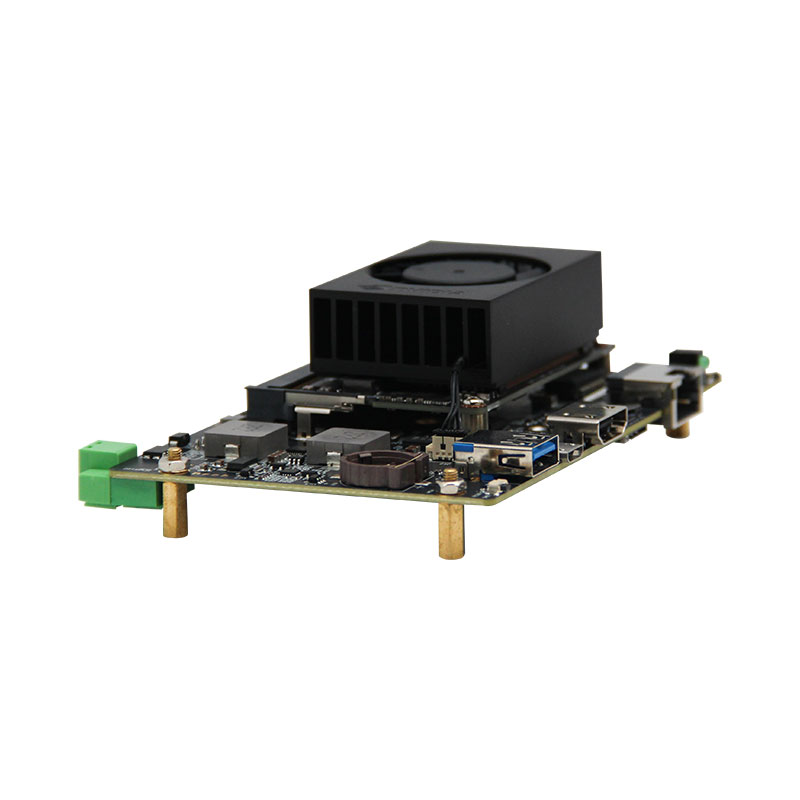

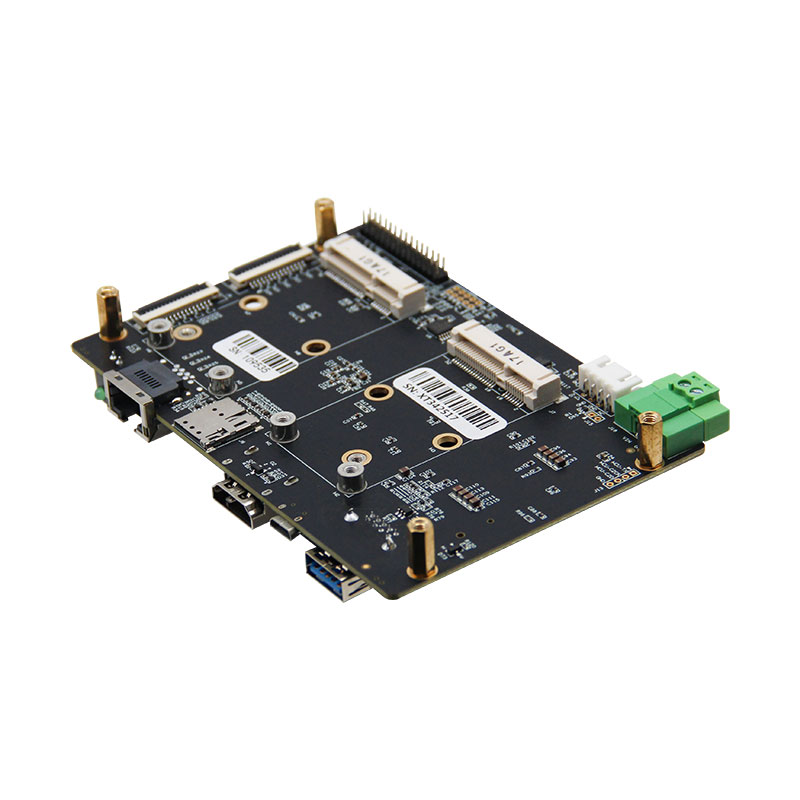

Y-C6-DEV開發系統

適配核心：Orin NX/Orin Nano/XAVIER NX/TX2 NX/NANO模組
支持原生系統
板卡尺寸：120mm×80mm×35 mm
電源適配器：DC +12V 5A
工作溫度： -25~+65℃


NVIDIA Jetson Orin Nano/Orin NX
Y-C6-DEV 開發套件

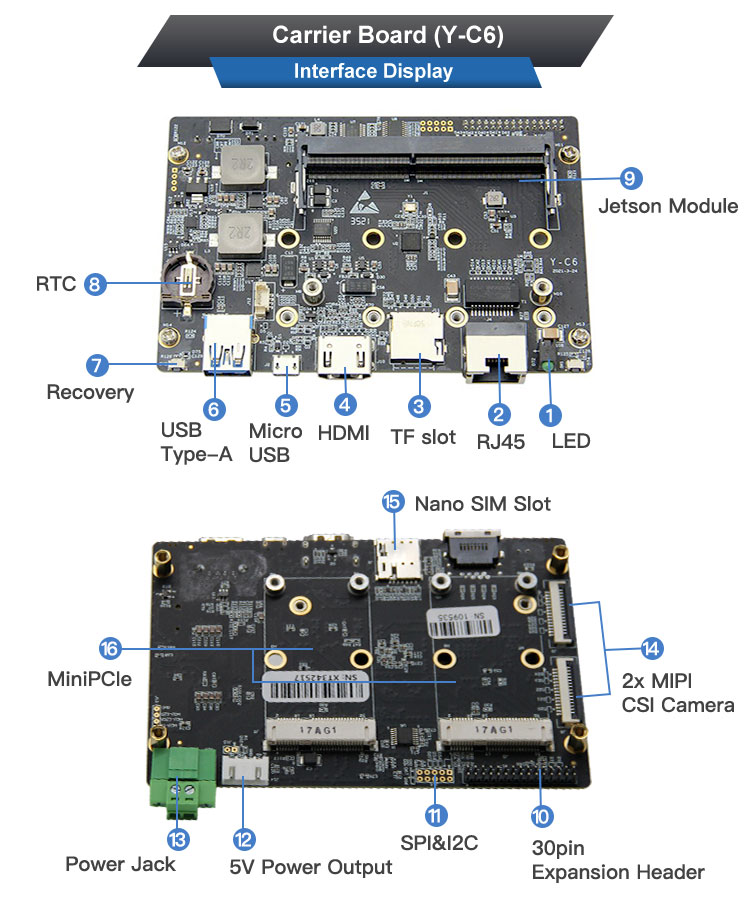

* 適配模組:
NVIDIA Jetson Orin NX/Orin Nano/Xavier NX/TX2 NX/Nano Module

* 通用接口:
1x USB 3.0, 1x Micro USB, 1x HDMI and 1x Gigabit Ethernet(10/100/1000 BASE-T) RJ45

* 外設接口:
1x Micro SD, 1x FAN, 1x Nano SIM, 2x MiniPCIe Connector, 2x 2 Lane MIPI Camera FPC Connectors, 1x CAN, 2x RS232, 1x UART, 3x GPIO, 1x GPO, 1x SPI, 2x I2C, 1x 20-pin Multi-function

* Input Power: AC to DC /220V to +12V 5A
Product Name
Y-C6-DEV
Type
開發套件
Jetson Module Supported
NVIDIA Jetson Orin Nano/Orin NX/Xavier NX/TX2 NX/Nano
Networking
1x Gigabit Ethernet (10/100/1000 BASE-T) RJ45
USB
1x USB 3.0
1x Micro USB
Camera
2x 2 Lane MIPI camera FPC connector
Display
1x HDMI
FAN
1x FAN
Other I/O
1x CAN, 2x RS232, 1x UART, 3x GPIO, 1x GPO, 1x SPI, 2x I2C
Mechanical
120mm x 80mm x 35mm
Weight
158g
Operating Temperature
-20℃~+65℃
Module
Jetson Orin NX 16GB
Jetson Orin NX 8GB
Jetson Orin Nano 8GB
Jetson Orin Nano 4GB
AI Perf
100 TOPS
70 TOPS
40 TOPS
20 TOPS
GPU
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
1.5MB L2 + 4MB L3
Memory
16GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
102.4GB/s
8GB 128-bit LPDDR5
68 GB/s
4GB 64-bit LPDDR5
34 GB/s
Storage
-
(Supports external NVMe)
Video Encode
1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
1080p30 supported by 1-2 CPU cores
Video Decode
1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
CSI Camera
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
Power
10W - 25W
10W - 20W
7W - 15W
7W - 10W
I/O Support
Xavier NX
Orin NX
HDMI
Support
Support
USB 3.0
Support
Support
Micro USB
Use to Flash System
Micro SD
Support
Nonsupport
RST
Support
Support
GPIO
Support
Support
I2C
Support
Support
CAN
Support
Support
SPI
Support
Support
MiniPCIe
Support
Support
USB 2.0
Support
Support
UART 0
Support
Support
UART 1
Support
Support
UART 2(DeBug)
Support
Support
MIPI
Support
-

Note

*當Y-C6安裝Jetson Nano模塊時，CAN不可用，1 miniPCIe連接器不可用。
