NVIDIA Jetson 擴展載板

  • Jetson Orin NX/Orin Nano 國產開發板
  • Jetson Orin NX/Orin Nano 國產開發板
  • Jetson Orin NX/Orin Nano 國產開發板
  • Jetson Orin NX/Orin Nano 國產開發板
Jetson Orin NX/Orin Nano 國產開發板Jetson Orin NX/Orin Nano 國產開發板Jetson Orin NX/Orin Nano 國產開發板Jetson Orin NX/Orin Nano 國產開發板

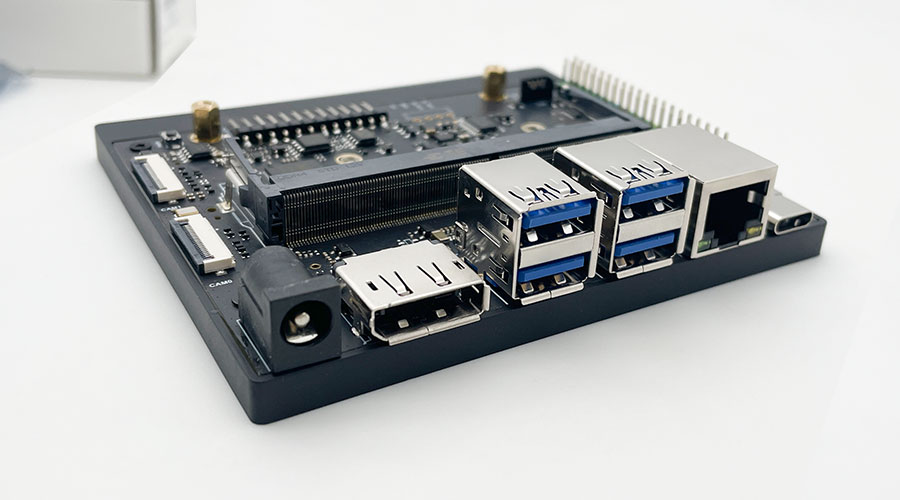

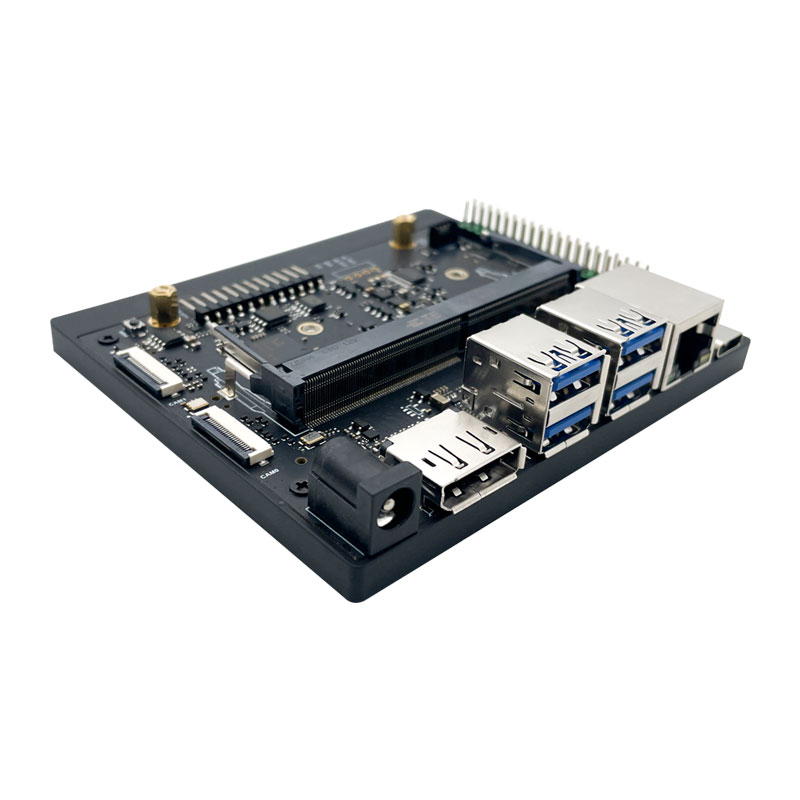

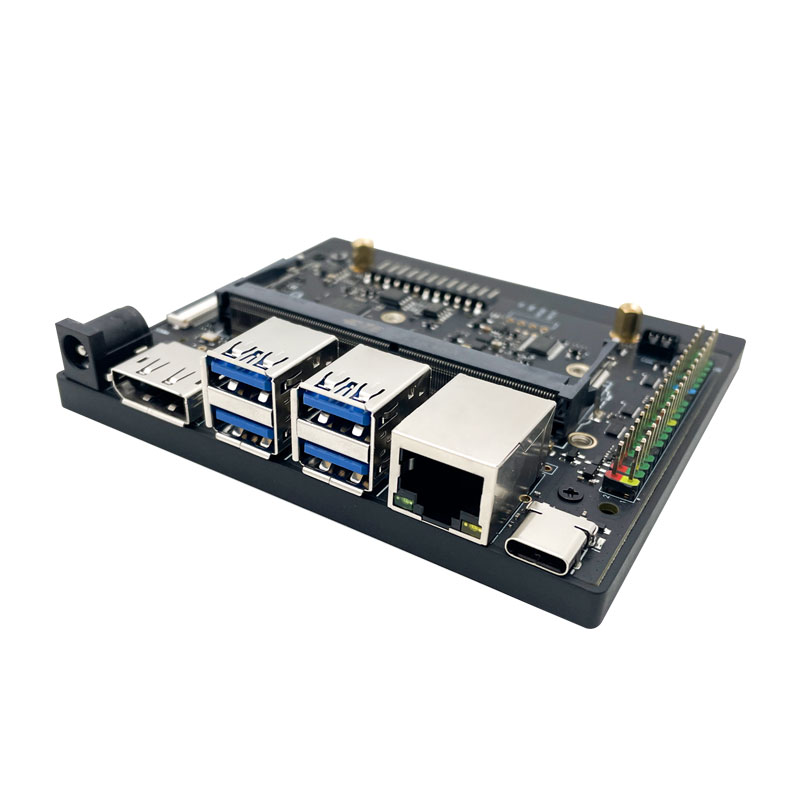

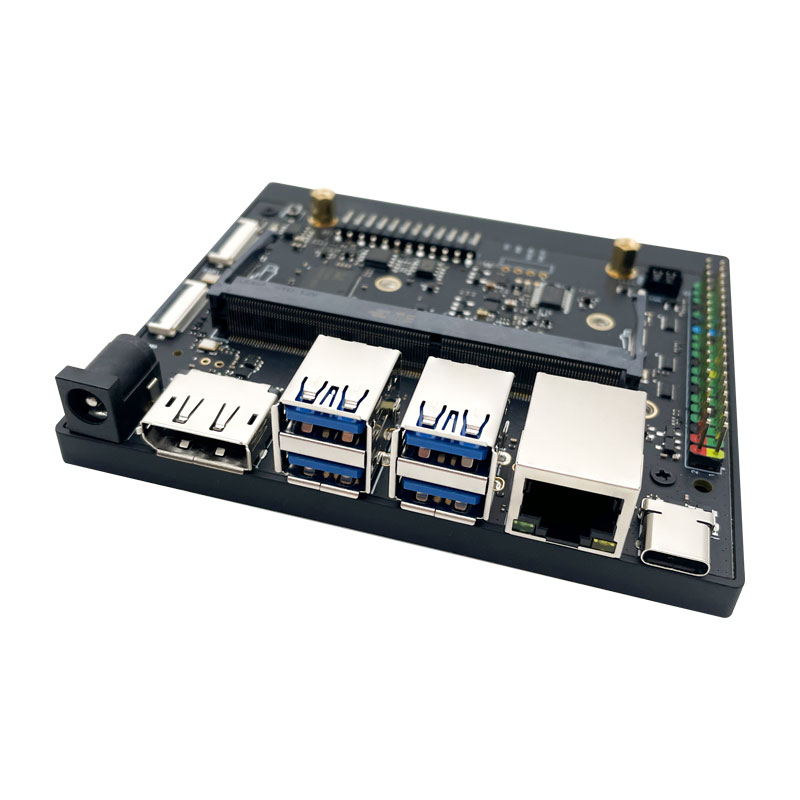

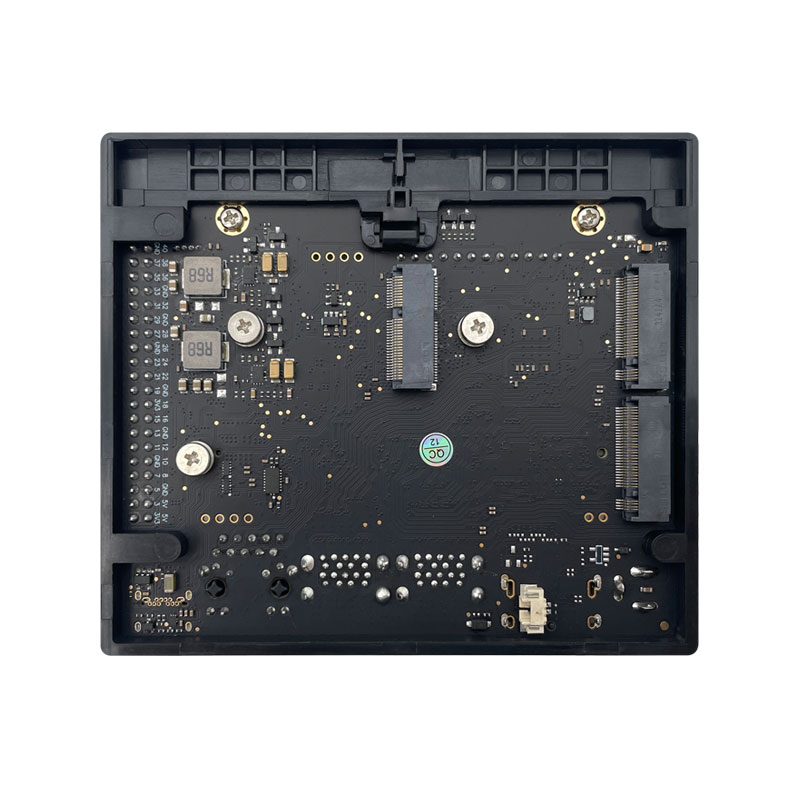

Jetson Orin NX/Orin Nano 國產開發板

板卡尺寸:104mm * 90mm * 23mm
電源輸入:DC 9V~19V
工作溫度:0 ~ +50°C
重量:81g


Orin NX/Orin Nano 國產開發板

Orin NX/Orin Nano 國產開發板是基于NVIDIA Jetson Orin NX/Orin Nano 核心模組設計，提供 M.2、 HDMI、USB 等更多豐富的接口，NVIDIA Jetson Orin Nano 核心模組有 4GB/8GB 顯存版本可選，NVIDIA Jetson Orin NX 核心模組則有 8GB/16GB 顯存版本可選可提供高達 20 TOPS/40 TOPS/70 TOPS/100 TOPS的 AI 性能，方便用戶更好地發揮產品性能.

USB 3.2 Type-A
 4

Type-C

1
RJ45 1
M.2 E key
 1
M.2 M key
 1

CSI camera

2x MIPI CSI-2

DisplayPort

1



NVIDIA Jetson Orin NX與NVIDIA Jetson Orin Nano模組的對比


Jetson Orin NX 16GB
 Jetson Orin NX 8GB
 Jetson Orin Nano 8GB
 Jetson Orin Nano 4GB
AI Performance
 157 TOPS
 117 TOPS
 67 TOPS  34 TOPS
GPU 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU2MB L2 + 4MB L3
 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU1.5MB L2 + 4MB L3
Memory 16GB 128-bit LPDDR5
102.4GB/s
 8GB 128-bit LPDDR5
102.4GB/s
 8GB 128-bit LPDDR5
68 GB/s
 4GB 64-bit LPDDR5
34 GB/s

Storage

-
(Supports external NVMe)
Video Encode
 1x 4K60 (H.265)
3x 4K30 (H.265)
6x 1080p60 (H.265)
12x 1080p30 (H.265)
 1080p30 supported by 1-2 CPU cores

Video Decode

1x 8K30 (H.265)
2x 4K60 (H.265)
4x 4K30 (H.265)
9x 1080p60 (H.265)
18x 1080p30 (H.265)
 1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)

CSI Camera

Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)
 Up to 4 cameras (8 via virtual channels***)
8 lanes MIPI CSI-2
D-PHY 2.1 (up to 20Gbps)

PCIe

1 x4 + 3 x1
(PCIe Gen4, Root Port, & Endpoint)
 1 x4 + 3 x1
(PCIe Gen3, Root Port, & Endpoint)
USB 3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0
 3x USB 3.2 Gen2 (10 Gbps)
3x USB 2.0

Networking

1x GbE
Display 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
 1x 4K30 multi-mode DP 1.2 (+MST)/eDP 1.4/HDMI 1.4**
Other I/O 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIOs
PowerPower 10W - 25W
 10W - 20W
 7W - 15W
 7W - 10W
Mechanical
 69.6mm x 45mm
260-pin SO-DIMM connector
